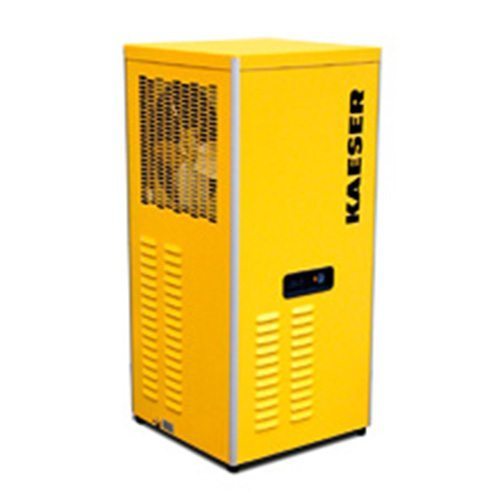

High Temperature Refrigerated Dyer
Dryer, Filter, and Drain in One Compact Package
Kaeser’s High Temperature Refrigerated Dryers (HTRD) are specifically designed for use with 5-25 hp piston compressors, although they will work well with any similar sized compressor producing high discharge temperatures. The HTRD contains an aftercooler, refrigeration unit, filtered separator, and drain to remove moisture and contaminants to a level suitable for most shop tools. This greatly increases tool life, reducing maintenance and downtime. For paint spraying applications, we strongly recommend also using a KOR model coalescing filter.
Additional information
| Product Type | Dryer |
|---|---|
| Rated CFM | 23-145 CFM |
Features
- Built to handle high inlet temperatures to 180°F
- Stainless steel, plate-type heat exchangers are compact, durable, and efficient
- Integral filter helps remove moisture, hydrocarbons, and solid particles
- Condensate drain automatically discharges liquid from dryer without air loss
- Automatic refrigeration temperature control system
- Hermetic refrigeration compressor requires no maintenance or adjustments
- Cool air exiting from the evaporator is reheated to save energy and prevent pipe sweating
Product Brochure
SEE PDFSpecifications
| Model | Flow Rate @ 175 psig (scfm) | Flow Rate @ 150 psig (scfm) | Flow Rate @ 125 psig (scfm) | Flow Rate @ 100 psig (scfm) | Powe Supply (V/Ph/Hz) | Inlet/Oulet Conn (in) | Dimensions (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| HTRD 20 | 23 | 22 | 20 | 18 | 115 / 1 / 60 | 1/2 | 10 1/8 x 12 7/8 x 28 1/4 | 79 |
| HTRD 25 | 29 | 27 | 25 | 23 | 115 / 1 / 60 | 1/2 | 10 1/8 x 12 7/8 x 28 1/4 | 80 |
| HTRD 35 | 41 | 38 | 35 | 32 | 115 / 1 / 60 | 1/2 | 10 1/8 x 12 7/8 x 28 1/4 | 81 |
| HTRD 50 | 58 | 54 | 50 | 45 | 115 / 1 / 60 | 3/4 | 16 7/8 x 16 7/8 x 36 3/4 | 150 |
| HTRD 75 | 87 | 81 | 75 | 68 | 115 / 1 / 60 | 3/4 | 16 7/8 x 16 7/8 x 36 3/4 | 155 |
| HTRD 100 | 116 | 108 | 100 | 91 | 230 / 1 / 60 | 1 | 16 7/8 x 16 7/8 x 45 3/4 | 187 |
| HTRD 125 | 145 | 135 | 125 | 114 | 230 / 1 / 60 | 1 | 16 7/8 x 16 7/8 x 45 3/4 | 189 |
