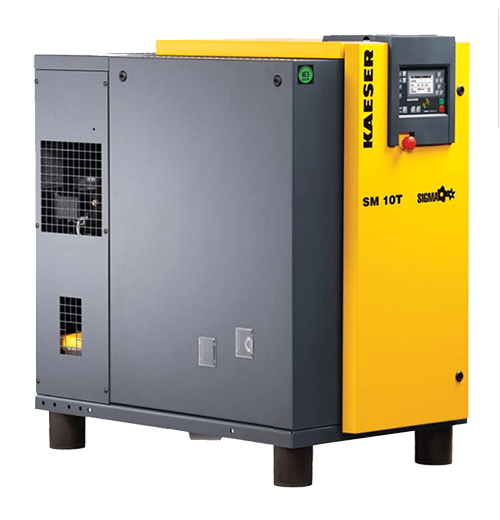

Rotary Screw Compressor
[3 - 30 HP] Rotary Screw, Belt Drive
Kaeser Compressors’ AS, SX, SM, and SK series of rotary screw compressors are the perfect solution for smaller compressed air systems. Not only do these compressors deliver more compressed air for sustainable energy savings, but they also combine ease of use with exceptional reliability and simple maintenance.
Additional information
| Product Type | Compressor |
|---|---|
| Horsepower | 3 – 30 HP |
Features
- Reliability
- Simplicity
- Performance
- Integrated Dryer Option
Product Brochure
SEE PDFSpecifications
| Model | Pressure | Capacity | Motor Power | Dimensions | Weight | Sound Level |
|---|---|---|---|---|---|---|
| SM 7.5 | 125 | 32 | 7.5 | 243/4 x 30 x 433/8 | 440 | 66 |
| SM 7.5T | 160 | 26 | 7.5 | 243/4 x 421/4 x 433/8 | 606 | 66 |
| SM 7.5 AIRCENTER | 217 | 19 | 7.5 | 243/4 x 471/4 x 671/2 | 886 | 66 |
| SM 10 | 125 | 42 | 10 | 243/4 x 30 x 433/8 | 460 | 67 |
| SM 10T | 160 | 35 | 10 | 243/4 x 421/4 x 433/8 | 628 | 67 |
| SM 10 AIRCENTER | 217 | 27 | 10 | 243/4 x 471/4 x 671/2 | 882 | 67 |
| SM 15 | 125 | 54 | 15 | 243/4 x 30 x 433/8 | 490 | 68 |
| SM 15T | 160 | 44 | 15 | 243/4 x 421/4 x 433/8 | 650 | 68 |
| SM 15 AIRCENTER | 217 | 34 | 15 | 243/4 x 471/4 x 671/2 | 904 | 68 |
