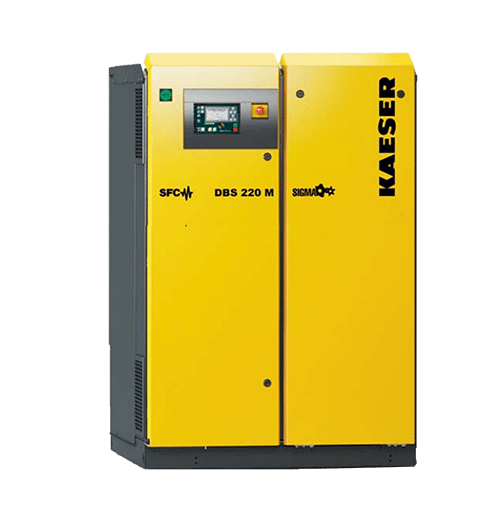

Rotary Screw Blower
BLOWER EFFICIENCY, REDEFINED
The rotors in Kaeser’s DBS, EBS, FBS, and HBS series screw blowers are descended from the world-renowned Sigma Profile™ and have been designed to meet the specialized needs associated with blower applications. Just like their compressor counterparts, Kaeser’s screw blowers deliver more air and more savings. Together, the blower airend and the premium quality mechanical and electrical components create a powerful, energy-efficient turnkey blower system with a cutting edge design
Additional information
| Product Type | Compressor |
|---|---|
| Horsepower | 30 – 150 HP |
Features
- Efficient operation
- Long-term dependability
- Cool and quiet
- Air at the press of a button
- Maximum efficiency: IE3 motors
- Blower airend with Sigma Profile
- Dependable seals
- Durable bearings
- Continuous system monitoring
Product Brochure
SEE PDFSpecifications
| Model | Pressure (psig) | Capacity (cfm) | Motor Power (hp) | Pipe Connection (in) | Dimensions (in) | Weight (lb) |
|---|---|---|---|---|---|---|
| DBS 220 L SFC | 9.5 | 812 | 40 | 4 | 43-5/8 x 59-1/8 x 65-3/4 | 1962 |
| DBS 220 M SFC | 15 | 777 | 50 | 4 | 43-5/8 x 59-1/8 x 65-3/4 | 2006 |
| DBS 220 L STC | 9.5 | 671 | 30 | 4 | 43-5/8 x 59-1/8 x 65-3/4 | 1803 |
| DBS 220 M STC | 15 | 636 | 50 | 4 | 43-5/8 x 59-1/8 x 65-3/4 | 1969 |
